Firewood Log Firewood Processor Splitter Splitter Hydraulic Full Forestry Woodworking Machinery Operation With All Accessories With E-start

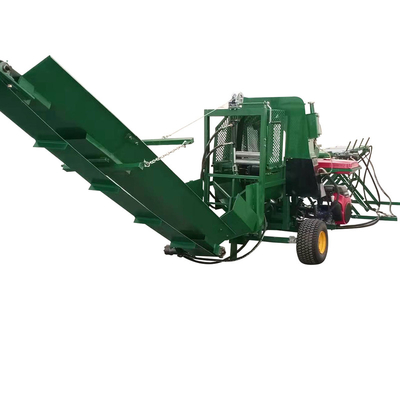

 Automatic firewood processor powered by Lifan 27hp V-twin engine, electric start, EPA approved,   equiped with a hydraulic 25" chainsaw, with max. 500mm splitting diameter and 610mm splitting length, 35 ton splitting force, towable with trailer coupler and wheels, come with all accessories of below:

 * 3m firewood discharge belt conveyor with remote(5m optional)

 * hydraulic log lifter

 * 4 way splitting blade(6 and 8 way optional)

 * 500mm splitting log diameter

 * full hydraulic operated

 Specification:

 Model: FWP35T-500(27G)

 Capacity: 10-12 cbm/hour

 Split cylinder force: 35T

 Chainsaw: 25 inch

 Splitting wood length: 100mm-4000mm

 Max splitting diameter: 500mm

 Max splitter length: 610mm

 Adjustable height wedges: 4 way, 6 way, 8 way wedge with hydraulic adjustable

 Automatic conveyor of feed wood(length x width) 1400 x 300mm

 Engine power: Honda GX630 V-twin engine, 13kw/3600rpm, 688cc, electric start,  EPA approved

 Chainsaw rotate speed: 10000rpm

 Oil pump: 22GPM

 Oil tank capacity: 40L

 Control valve: two joystick 8- directional control valve

 Tyre of wheel: 40cm diameter

 Machine size: 3200 x 1500 x 1590mm

 Packing size: 2500x 1800 x 1800mm

 N.W/G.W: 980/1080kg

Products details:

Customer working site show:

Related products:

Log trailer with crane for customer's choice if required, our log crane range from 1 ton -12 ton, trailer length from 3.6m to 6.3m, crane have CR02/CR04/CR06 accordingly, power option has PTO, gasoline/diesel engine for choice, and extendedable beam for option.

Q: what is the warranty?

 A:  we give 24 month manufactuer's warranty on the processor and accessories.

 Q: Any engine choice?

 A:  we have gasoline 15hp/24hp/35hp optional and diesel 12hp/19hp/25hp for choice,

      also branded Honda GX630 or Kohler 35hp optional

 Q: what kind of accessories could i choose?

 A: 1) log table with chain and in feed conveyor

     2) log deck with hydraulic lifter(customer can choose either log table or this log lifter)

     3) firewood discharge belt conveyor(3m standard, 4m/5m optional at extra cost)

     4) splitting wedge (4 way/6 way/8 way optional)

     5) oil cooler

 Q: what is the delivery lead time?

 A: usually speaking 30 days

 Q: any certificate?

 A: EPA approval for USA, Canada, Australian market and the rest market CE okay

 Q: how it delivered?

 A: usually ocean freight, as this machine is big in size and gross weight up to 990kg, so ocean freight is first choice,

     LCL or FCL all okay.

Q: if any parts damaged or broken during warrany, what can you do for that?

 A: we will provide the parts for free and get it delivered to customer by express or sea freight, it depends on the parts size and weight; ; also we make sure to provide all the parts for our machine for more than 5 years.
