Firewood splitter 12HP 32 ton diesel automatic firewood processor diesel log splitter 32 ton log wood processor diesel wood fire wood chipper

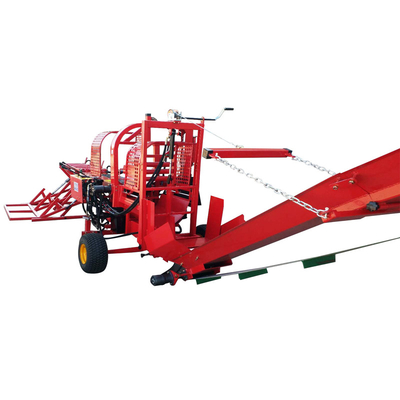

  Model FWP32T-500(12D), the 12hp diesel 32 ton automatic firewood processor, electric start,

  it equiped with a 25" hydraulic chainsaw, with max. 500mm  splitting diameter and 610mm splitting length,

  0-150mm splitting wedge adjustable height, can process logs 100-4000mm in length, towable with trailer coupler and wheels.

  Price is for both processor and accessories below:

  1. hydraulic log lift/elevator

  2. 3m firewood discharge belt conveyor with remote (5m optional)

  3. 4 way splitting wedge(6 way and 8 way wedge optional)

  Detailed specification:

 Split cylinder force: 32T

 Capacity: 8-12 cbm/h

 Chainsaw: 25 inch(model 381)

 Splitting wood length: 100mm-4000mm

 Max splitting diameter: 500mm

 Max splitter length: 610mm

 Adjustable height wedges: 4 way, 6 way, 8 way wedge with hydraulic adjustable

 Automatic conveyor of feed wood(length x width) 1400 x 300mm

 Engine power: 12HP diesel engine with 12V/36A battery, electric start (19hp diesel engine optional)

 Chainsaw rotate speed: 10000rpm

 Oil pump: 22GPM

 Oil tank capacity: 40L

 Control valve: two joystick 8- directional control valve

 Tyre of wheel: 40cm diameter

 Machine size: 3200 x 1500 x 1590mm

 Packing size: 2500 x 1800 x 1800mm

 N.W/G.W: 980/1080kg

Products details:

Customer working site show:

Related products:

Log trailer with crane for customer's choice if required, our log crane range from 1 ton -12 ton, trailer length from 3.6m to 6.3m, crane have CR02/CR04/CR06 accordingly, power option has PTO, gasoline/diesel engine for choice, and extendedable beam for option.

Q: what is the warranty?

 A:  we give 24 month manufactuer's warranty on the processor and accessories.

 Q: Any engine choice?

 A:  we have gasoline 15hp/24hp/35hp optional and diesel 12hp/19hp/25hp for choice,

      also branded Honda GX630 or Kohler 35hp optional

 Q: what kind of accessories could i choose?

 A: 1) log table with chain and in feed conveyor

     2) log deck with hydraulic lifter(customer can choose either log table or this log lifter)

     3) firewood discharge belt conveyor(3m standard, 4m/5m optional at extra cost)

     4) splitting wedge (4 way/6 way/8 way optional)

     5) oil cooler

 Q: what is the delivery lead time?

 A: usually speaking 30 days

 Q: any certificate?

 A: EPA approval for USA, Canada, Australian market and the rest market CE okay

 Q: how it delivered?

 A: usually ocean freight, as this machine is big in size and gross weight up to 990kg, so ocean freight is first choice,

     LCL or FCL all okay.

Q: if any parts damaged or broken during warrany, what can you do for that?

 A: we will provide the parts for free and get it delivered to customer by express or sea freight, it depends on the parts size and weight; ; also we make sure to provide all the parts for our machine for more than 5 years.
