Caratteristiche

Specificazioni

Condition: New

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2021

Warranty of core components: 3 years

Core Components: Engine

Voltage: 380V 50Hz 3Phase

Power: 132kw, 132kw

Dimension(L*W*H): See Technical Parameters

Warranty: 12 months

Key Selling Points: Low Noise Level

Applicable Industries: Farms, Energy & Mining

Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Saudi Arabia, Indonesia, Russia, Thailand, Morocco, Kenya, South Korea, Colombia, Sri Lanka, South Africa, Japan, Malaysia, Australia

Weight (KG): 3000

Name: wood pallet stump cutter grinder tree root crusher machine

Keywords: Tree root crusher

Application: Wood Processing

Raw material: Straw Grass Wood Branches

Type: Multifunctional Efficient Hammer Mill

Final product: Size Adjustable

Color: Customer Required

Advantage: High Efficieny

Capacity: 2-3t/h

Informazioni di base

Termini di pagamento e spedizione

Packaging Details: 20 container of Energy-saving disc branch firewood processor diesel forestry wood pallet stump cutter grinder tree root crusher machine

Supply Ability: 9 Set/Sets per Month

Descrizione di prodotto

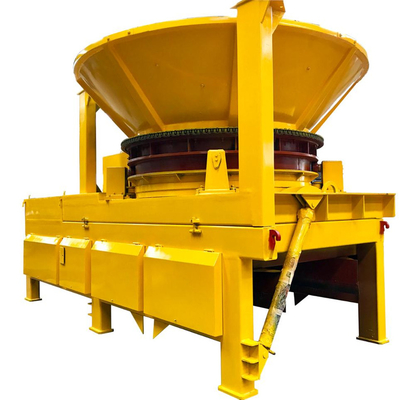

Energy-saving disc branch firewood processor diesel forestry wood

pallet stump cutter grinder tree root crusher machine

TECHNOLOGY PARAMETERS

Model	Knife Roll Diameter	Fly Blade Quantity	Blade Length	Hammer Quantity	Feed Port Dimension	Motor Power	Knife Roll Speed	Feeding Speed
SJ-700	700mm	4Pcs	480mm	28pcs	2600mm	132+3+3+7.5kw	800r/min	20m/min

MORE DETAILS

Raw materials

Disc tree root stump crusher machine is also called the wood comprehensive crusher, rotary wood crusher. This tree root crusher is a large wood crushing equipment, suitable for biomass power generation field, large roots, large diameter logs, templates, boards, branches, straw crushing processing.

Working Principle

When the disc type stump crusher is working, the motor drives the rotor to rotate, and the feed hopper is also driven by the motor to slowly rotate. The material is put into the hopper by the grab machine, and the hopper is rotating at the same time as the inner wall of the material is shifted The teeth will evenly push the material onto the rotor. When the rotating rotor encounters the material, the cutting and tearing of the blade on the rotor realizes the initial crushing of the material. The material that has entered the initial crushing will not fall under the action of its own gravity and the impact of the rotor. On the screen in the crushing chamber, the materials that meet the requirements will be discharged through the screen, and those that do not meet the requirements will be crushed twice or even three times in the crushing chamber until they meet the requirements

Structure

Tree stump crusher comprises a frame, a rotary material box which rotates under the drive of a material box driving device, a rotor which rotates under the drive of a rotor driving device, the rotor is positioned below the rotary material box, and the position of a feed inlet and a feed hopper is relatively paranoid. we can using hammer knives (if in the materials have stone or iron )

DETAILS

RAW MATERIALS

FINISHED PRODUCTS

INTERNAL STUCTURE

CUSTOMER SITE

RELATED PRODUCTS

OUR COMPANY

Q: What is the information that I need to offer to get a quotation?
A: In order to design a solution and offer the quotation, we need the following information.1 the raw material 2 the size of the raw material before crushing by inch or mm 3 the finished product size by inch or mm 4 the production capacity by tons per hour.

Q: How long will I get the answer from you if I give the inquiry?
A:Upon receiving your inquiry, we will answer you in 24 hours.

Q: What about the payment terms?
A:30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the factory.

Q: How long is the warranty?
A: The warranty period for structural and mechanical equipment is one year. The warranty period for all electric motors is 3 years. Wear parts are not covered by warranty unless the component part is found to be flawed.

Q: Do you provide overseas installation service?
A: Yes. If you buy machines from us, we will dispatch the most professional engineer to your local site to guide the installation.After the installation, the engineer will also do the commissioning and train the workers to operate the machines, and do the maintenance

Q:.Is the spare parts available?
A: Yes. The spare parts are available. We will give you a 5% discount if you buy from us at the basis of our best price.

Q: How to deliver the spare parts?
A: the spare parts will be packed in wooden case. Generally the spare parts will be sent by sea, but if you need it urgently, we will deliver by air.

Q: What is the lead time?
A: If we have in stock, the machine will be delivered in 3-7 working days after we will the down payment.( the motor needs to be customized as per your local voltage and frequency). If not, it needs 10-30 working days.

Q: What is about your after sales service?
A: Should any problems occur, our team of Engineers and Technicians will respond within 12 hours of notice by the client. If the problems still can not be solved, we will send the engineers to your site to solve the problem.
