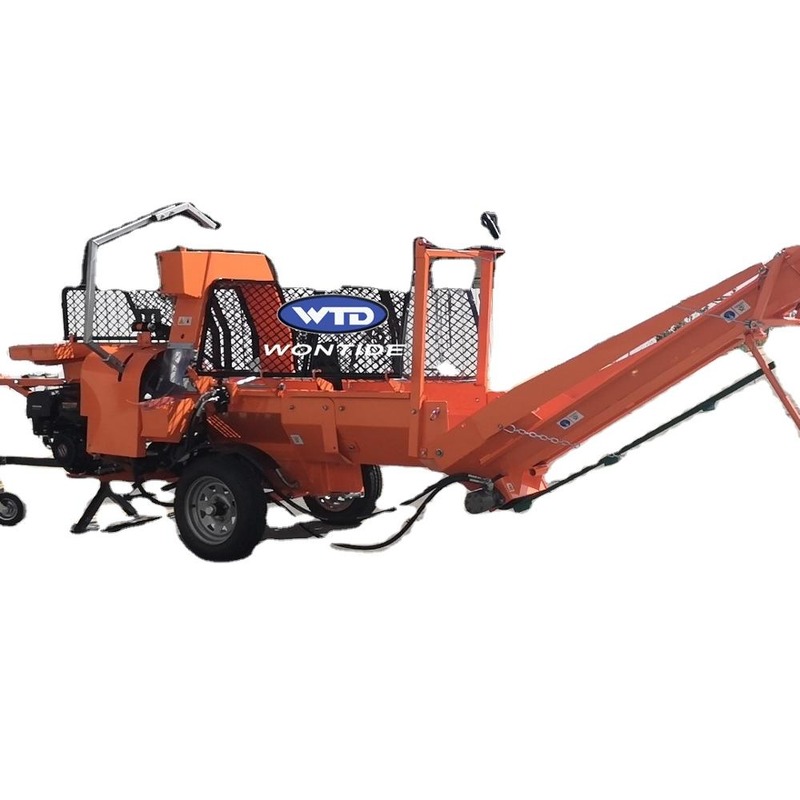

Farms 27Ton Firewood Processor Automatic Wood Processor Log Splitter

1 Piece
MOQ
$3,100.00(1 - 19 Pieces) $2,800.00(>=20 Pieces)
prezzo
Farms 27Ton Firewood Processor Automatic Wood Processor Log Splitter
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Applicable Industries: Farms, Home Use, Forest, log splitting
Showroom Location: Canada
Condition: New
Type: Log Splitter
Use: cut,split logs
Power Type: Gasoline
Dimension(L*W*H): 2000X950X1100
Weight: 500kg, 550kg
Warranty: 1 Year
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Pump, Engine
Name: firewood processor
Color: customized
Conveyor: 3.2m
Package: wooden case
Cycle time: 6s
Max Splitting Force: 27ton
Max. Log diameter: 50cm
Max log length: 61cm
Loading qty: 24/40HQ
Local Service Location: Canada
After-sales Service Provided: Free spare parts, Video technical support, Online support
Certificazione: CE, ISO9001
Informazioni di base
Certificazione: CE, ISO9001
Termini di pagamento e spedizione
Packaging Details: iron frame
Supply Ability: 200 Piece/Pieces per Month
Descrizione di prodotto
Product Description

OPERATION

The  WTD-FP27T Firewood Processor is a simple and safe to use product designed to cut and split your logs into

firewood.

Simply load your log on the roller table, advance the log to the preset length (up to 24″), pull down the chainsaw bar handle to cut the log and then advance the ram to split it in either half or quarters or sixts  depending on whether you use the 2 or 4  or 6 way splitter.

The ram automatically extends and retracts, ready for the next piece. The split firewood then advances up the hydraulically driven conveyor system to make large piles. The conveyor is great for piling your wood into bins, trailers or trucks, thus eliminating multiple handling and saving you a lot of time!
The height of the conveyor can be adjusted to multiple heights simply by using the winch to raise and lower it. It can also be folded in half for easy storage or transport. The conveyor itself is 10″ wide and 10′ 6″ long.
The rolling log table can also be folded up for transport and storage, reducing the overall footprint when not in use. Even the tongue of the processor is removable for storage.

Characteristics


18HP Ducar gas engine
Produces up to 1 bush cord/hour
27 ton ram
8 second ram cycle time
15″ log diameter capability
Up to 24″ cutting length
2-4-6 way splitter
10 ft log lengths
145/60/13 wheels/tires (rated up to 80 km/hour)
1160 lbs overall weight
Bar oil drip system to keep the chain lubricated while cutting
Powder coated and galvanized steel finishes
1 year warranty

Cutting/Splitting

WTD-FP27T firewood processor is capable of cutting 15″ diameter logs and up to 10 ft in length.

The log can be cut into lengths up to 24″.

The 27 ton ram splits the wood against the standard 2/4/6 way splitter (cuts wood in 2 or 4 or 6 pieces) before reaching the 10″ wide / 10′ 6″ length long conveyor system for piling.

18" Chainsaw Bar

Designed to be used in conjunction with a 0.058″ x 0.325″ x 76 chain.

 The chainsaw bar is hydraulically driven, meaning you do not need to supply your own chainsaw.

This provides a much quieter and easier to operate system than processors that require the use of chainsaw.

Power

18HP Ducar gas engine(1 year warranty).

It features a slant cylinder design, with a cast iron cylinder bore and overhead valve for easy access.

The Quad-Clean 4-stage air filtration system ensures only clean air enters the engine for maximum power and life of the engine.

This engine is backed by a 3 year commercial warranty and can be serviced through your local Kohler dealer.

SPECIFICATIONS FOR WTD-FP20T WOOD PROCESSOR


Engine(option)
Kohler
14HP
gasoline
DUCAR
15H.P
gasoline
Loncin
14HP
gasoline
Max.Splitting Force
27Ton
5Max.Diameter
50cm
Max.Log Length
61cm
Cycle time
7seconds
Wheel
12inch trailer wheel
Knife
4 ways kinfe (6 way wedge as option)
Conveyor
3.2meter length
Net Weight
550 kg
Packing
wooden case
Loading Qty.
24pcs/40'HQ
Our Company

Introduction:

QINGDAO WONTIDE has about 300 employees including more than 20 technical staff, covering a total area of nearly 30,000 sq meters.

FAQ

Q: Are you a factory or trading company?
A: We have our own factory, using “Self-produced Self-marketing” business model,reducing the cost of intermediate links.
Q: How can I get some samples?
A: We are honored to offer you samples.
Q: How does your factory do regarding quality control?
A:Quality is priority. WTD people always attach great importance to quality controlling from the very beginning to the very end. Warmly welcome to visit us!
Q: If I need different measurements or weight, could you offer OEM service?
A: Sure, we can provide OEM service, also we can make new mould for your product,attaching your name brand.

Production
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* 1 Year warranty.

* Engineers available to service machinery overseas.

Packing & Delivery
