Home Use 15 Ton Classic PTO Wood Processor Firewood PTO

1 Piece
MOQ
$2,600.00(1 - 23 Pieces) $2,300.00(>=24 Pieces)
prezzo
Home Use 15 Ton Classic PTO Wood Processor Firewood PTO
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Applicable Industries: Home Use
Showroom Location: Canada
Condition: New
Type: Log Splitter
Use: Split Wood
Weight: 420KG
Warranty: 1 Year
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Pump
Name: pto wood processor
Color: Customized
Package: wooden case
Conveyor: Yes
Max Splitting Force: 15ton
Max log length: 61cm
Max log diameter: 38cm
Cycle time: 8s
Knife: 4ways or 6ways
Loading qty: 24pc/40HQ
Local Service Location: Canada
After-sales Service Provided: Free spare parts, Video technical support, Online support
Certificazione: CE ISO
Informazioni di base
Certificazione: CE ISO
Termini di pagamento e spedizione
Packaging Details: 1pc/wooden case
Supply Ability: 200 Piece/Pieces per Month
Descrizione di prodotto
Product Description

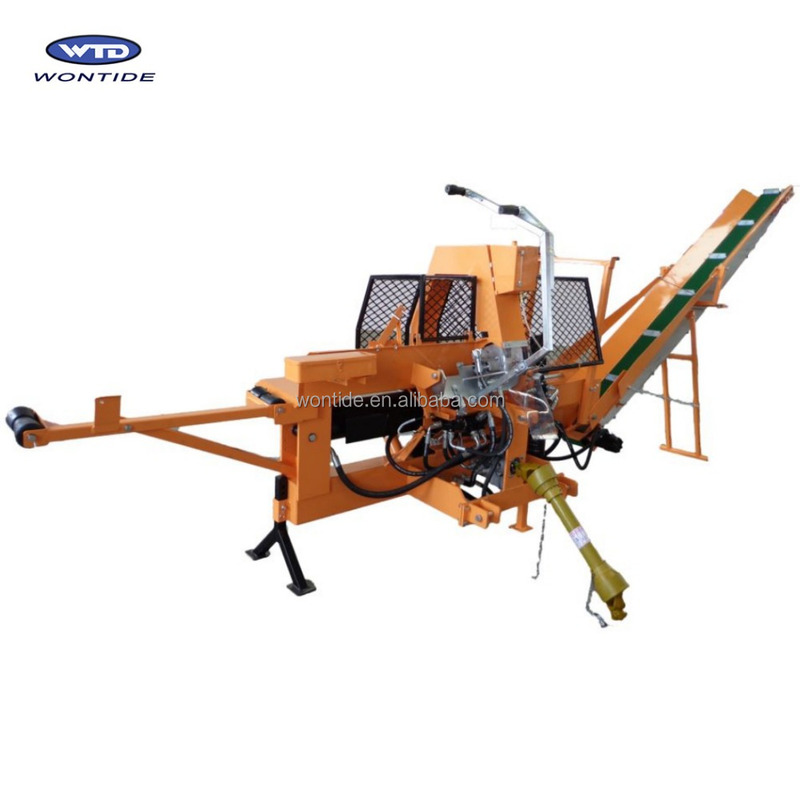

15Ton PTO WOOD PROCESSOR with conveyor

We offers our New 15Ton PTO drive 3 Point Hitch Firewood Processor to help fill a void in the industry, offering acreage owners an economical and well engineered processor. The 15T PTO Firewood Processor is a simple and safe to use product designed to cut and split wood in one operation. The split firewood then advances up the hydraulically driven conveyor system. The conveyor is great for piling your wood into bins, trailers or trucks, thus eliminating multiple handling and saving you time!

15TON PTO FIREWOOD PROCESSOR
Driven
PTO driven
Max.Splitting Force
15Ton
Max.Log Diameter
38cm
Max.Log Length
61cm
Conveyor length
3.2m
Conveyor width
200mm
Cycle time
6 seconds
Knife
2 or4ways knife(6 ways option)
Net Weight
420kg
Packing
Iron pallet

Main Features

The 15T PTO Firewood Processor is capable of cutting more than 1 cord an hour and will fit 38mm diameter logs and up to 3.66m in length. The log can be cut into lengths up to 610mm. The 15 ton ram splits the wood against the standard 2/4 way splitter (cuts wood in 2 or 4 pieces) or we offer an optional 6 way splitter.

Detailed Images

Hydraulic feeding.

Hydraulic infeed assembly, mounts to all WTD wood processors.

It mounts to existing brackets and only 2 holes need to be drilled to mount the hand control.

Wedge

Wedge:4/6-way wedge

Cut 40cm diameter logs and up to 61cm in length,


3.2m Conveyor

Belt width:200mm

Conveyor length:3.2meter


Our Company

Introduction:

QINGDAO WONTIDE has about 300 employees including more than 20 technical staff, covering a total area of nearly 30,000 sq meters.

FAQ

Q: Are you a factory or trading company?
A: We have our own factory, using “Self-produced Self-marketing” business model,reducing the cost of intermediate links.
Q: How can I get some samples?
A: We are honored to offer you samples.
Q: How does your factory do regarding quality control?
A:Quality is priority. WTD people always attach great importance to quality controlling from the very beginning to the very end. Warmly welcome to visit us!
Q: If I need different measurements or weight, could you offer OEM service?
A: Sure, we can provide OEM service, also we can make new mould for your product,attaching your name brand.

Production
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* 1 Year warranty.

* Engineers available to service machinery overseas.

Packing & Delivery
